MSI Unveils Compact GeForce RTX 5060 Models for SFF PCs: Cyclone and Inspire

Introduction to MSI’s New GeForce RTX 5060 Models

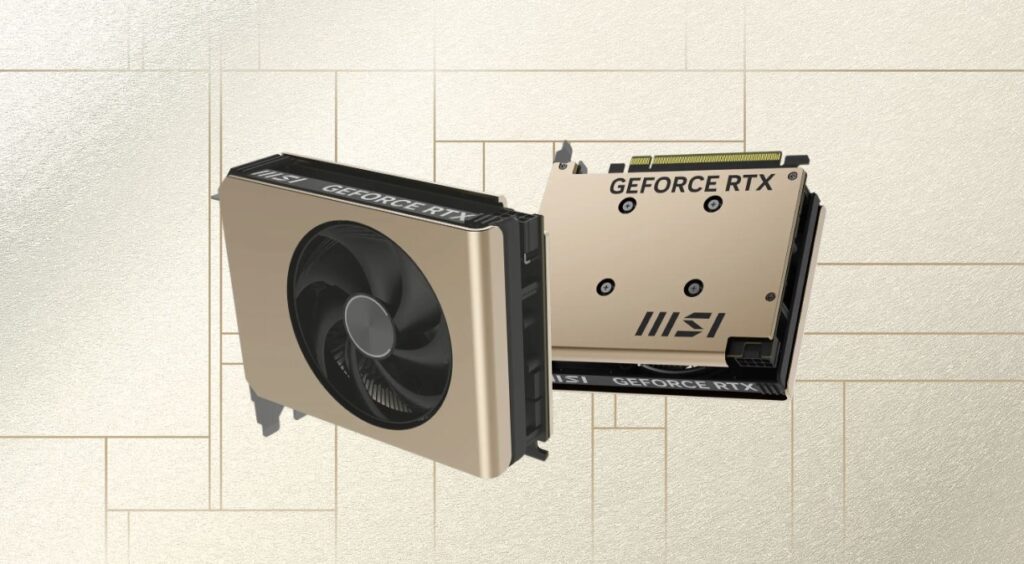

MSI has introduced two new models of the GeForce RTX 5060 graphics card, specifically designed for small form factor (SFF) PCs: the Cyclone and Inspire versions. These models boast unique designs and specifications tailored for different user needs. The Cyclone version measures 16.1 x 12.5 x 4.2 cm and weighs 451 g, while the Inspire version is slightly more compact at 14.5 x 12 x 4.5 cm but heavier at 581 g, attributed to its additional front panel.

Differences in Design and Target Audience

While both models share the same core specifications, their cooling systems differ. The Cyclone is crafted for gaming enthusiasts, offering optimized cooling for extended gaming sessions. In contrast, the Inspire is designed for content creators, focusing on rendering efficiency and stability. Both variants feature a single-fan setup, ensuring they remain compact while delivering performance.

Specifications of MSI GeForce RTX 5060 Models

Both the Cyclone and Inspire models are equipped with an 8-pin power connector, achieving a maximum boost frequency of 2535 MHz with a power consumption of 145 watts. MSI has not yet disclosed the pricing and release date for these graphics cards. Built on the Blackwell architecture, the GeForce RTX 5060 comes with 3840 CUDA cores and 8 GB of GDDR7 VRAM, connected through a 128-bit memory bus. The cards support PCIe 5.0 x16, three DisplayPort 2.1b interfaces, and a single HDMI 2.1b port.

Detailed Specifications

MSI GeForce RTX 5060 8G INSPIRE ITX OC Specifications

• Bus standard: PCI Express Gen 5 x16 (using x8)
• Core speed: 2535 MHz (Extreme Performance), 2527 MHz (Boost)
• CUDA cores: 3840
• Memory speed: 28 Gbps
• Memory: 8GB GDDR7
• Memory bus: 128-bit
• Output: DisplayPort x3 (v2.1b), HDMI x1 (HDMI 2.1b: 4K 480Hz or 8K 120Hz, DSC, Gaming VRR, HDR)
• HDCP support: Yes
• Power consumption: 145W
• Power connectors: 8-pin x1
• Recommended PSU: 550W
• Size and weight: 145 x 120 x 45 mm, 581 g
• DirectX version support: 12 Ultimate
• OpenGL version support: 4.6
• Maximum screens: 4
• G-Sync technology: Yes
• Maximum resolution: 7680 x 4320

MSI GeForce RTX 5060 8G CYCLONE OC Specifications

• Bus standard: PCI Express Gen 5 x16 (using x8)
• Core speed: 2535 MHz (Extreme Performance), 2527 MHz (Boost)
• CUDA cores: 3840
• Memory speed: 28 Gbps
• Memory: 8GB GDDR7
• Memory bus: 128-bit
• Output: DisplayPort x3 (v2.1b), HDMI x1 (HDMI 2.1b: 4K 480Hz or 8K 120Hz, DSC, Gaming VRR, HDR)
• HDCP support: Yes
• Power consumption: 145W
• Power connectors: 8-pin x1
• Recommended PSU: 550W
• Size and weight: 161 x 125 x 42 mm, 451 g
• DirectX version support: 12 Ultimate
• OpenGL version support: 4.6
• Maximum screens: 4
• G-Sync technology: Yes
• Maximum resolution: 7680 x 4320
